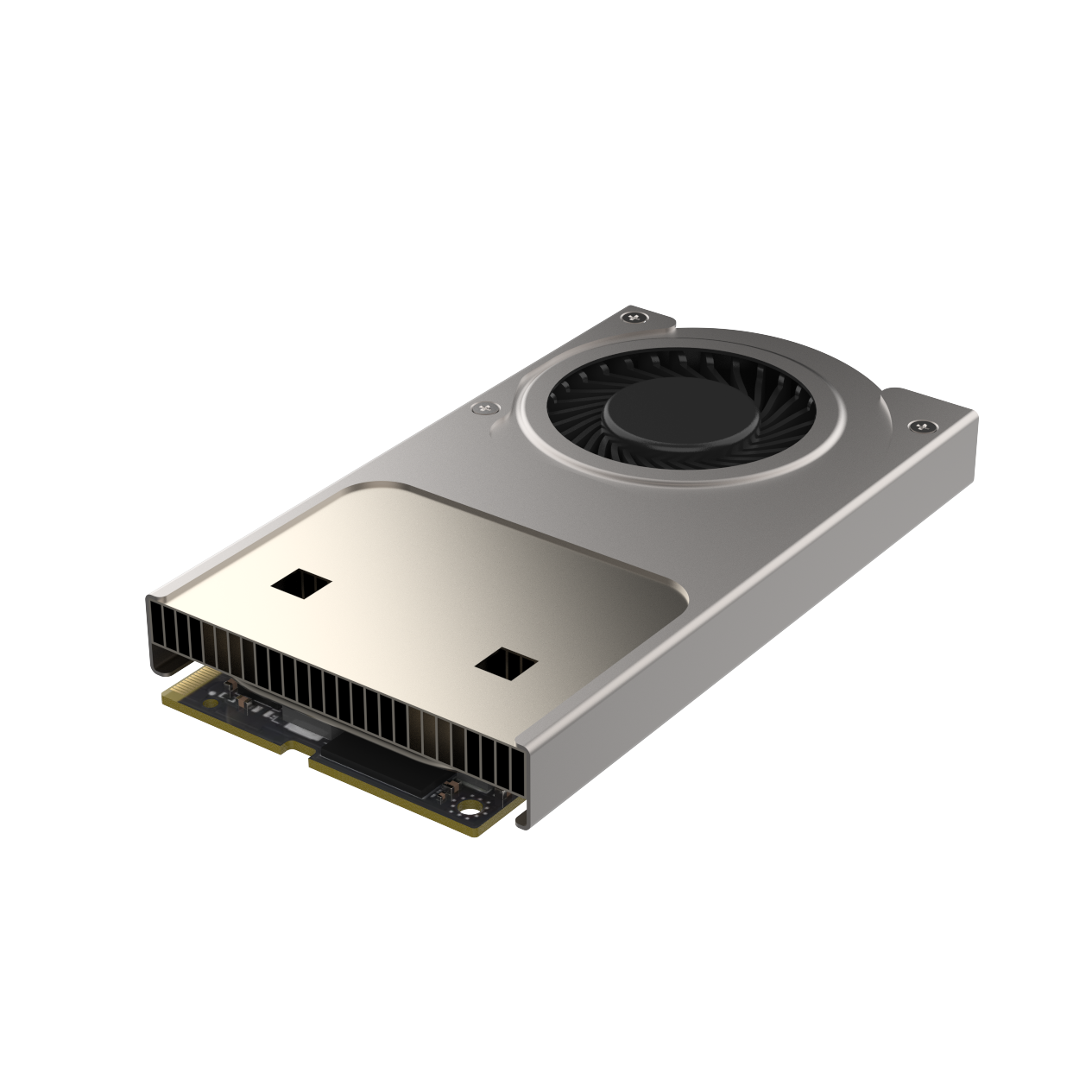

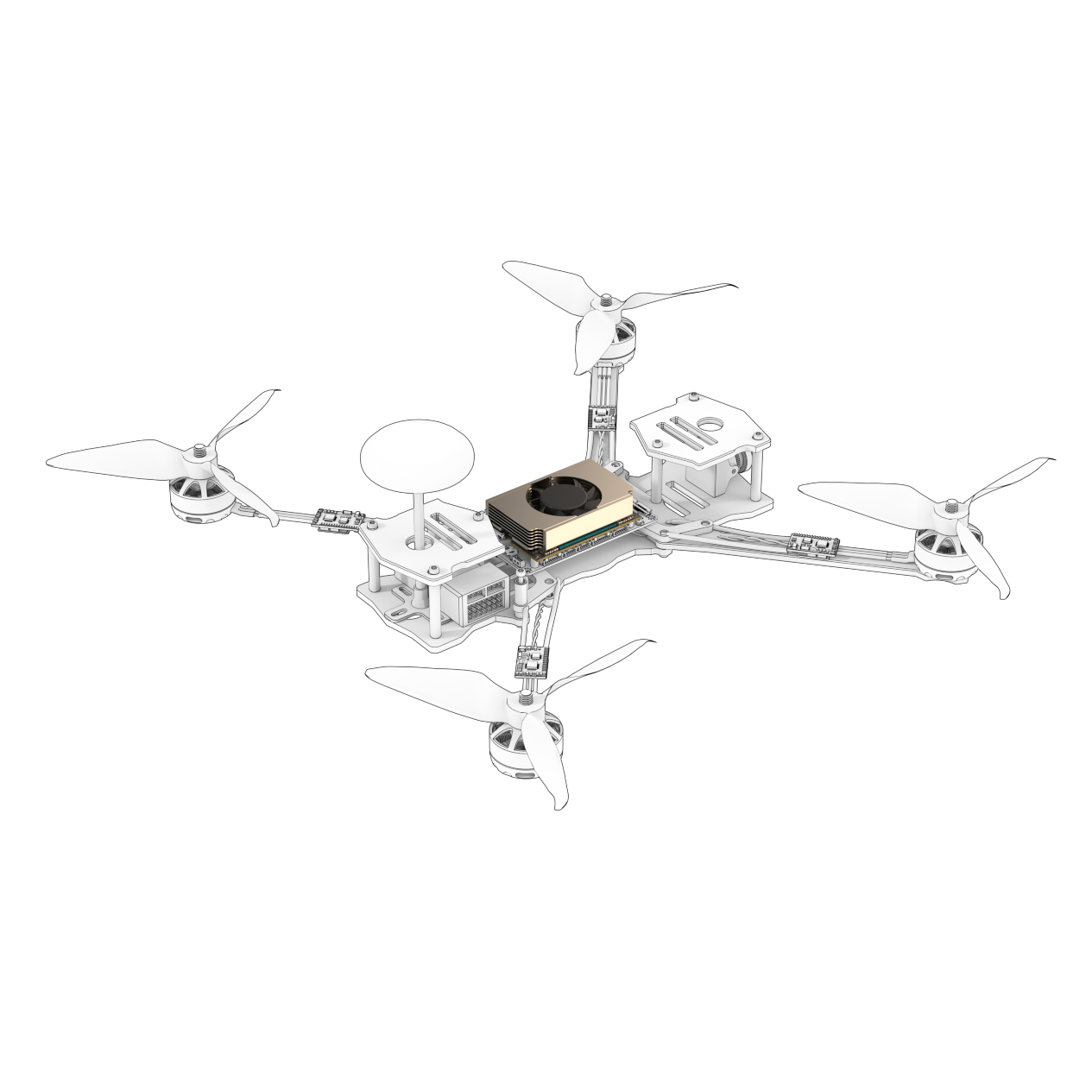

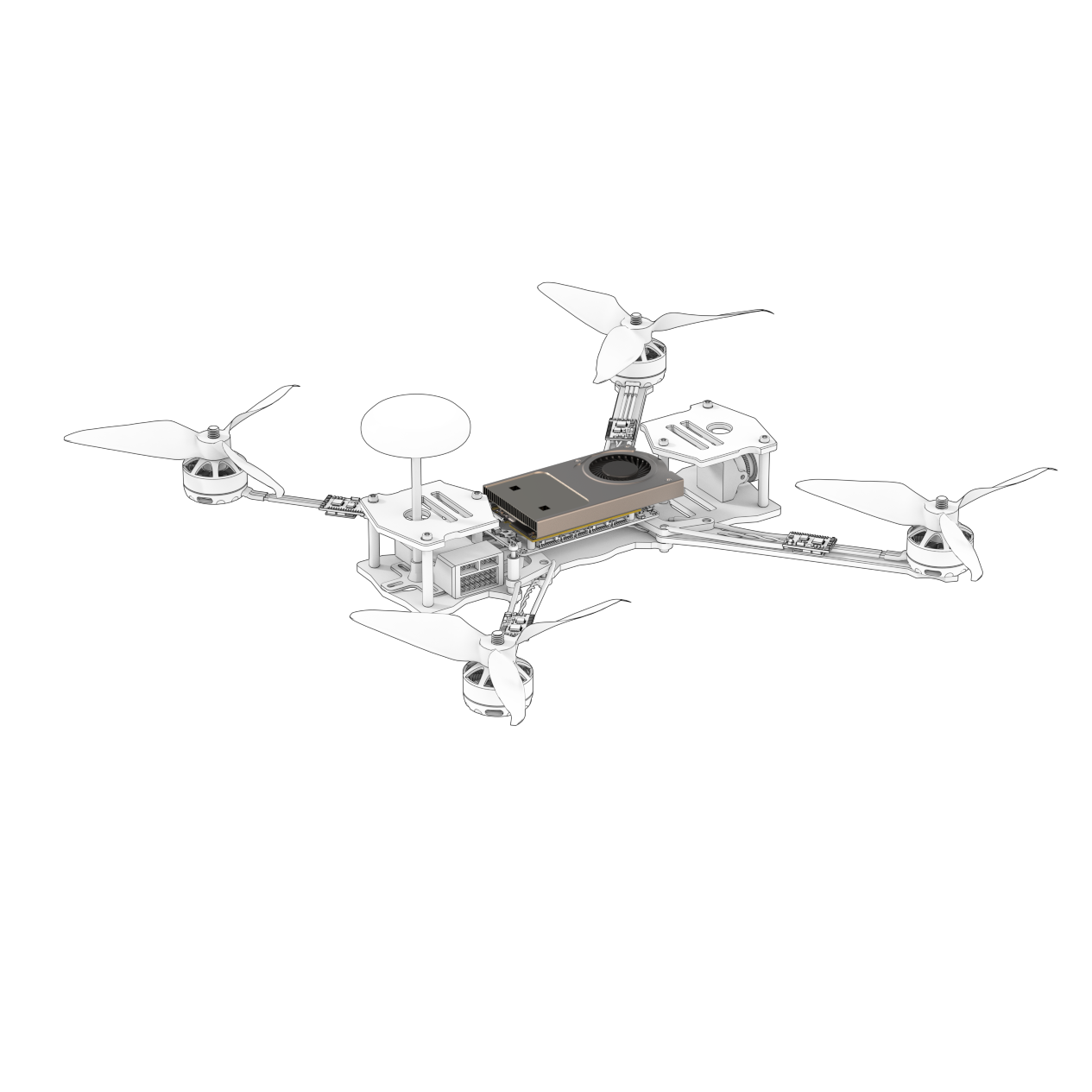

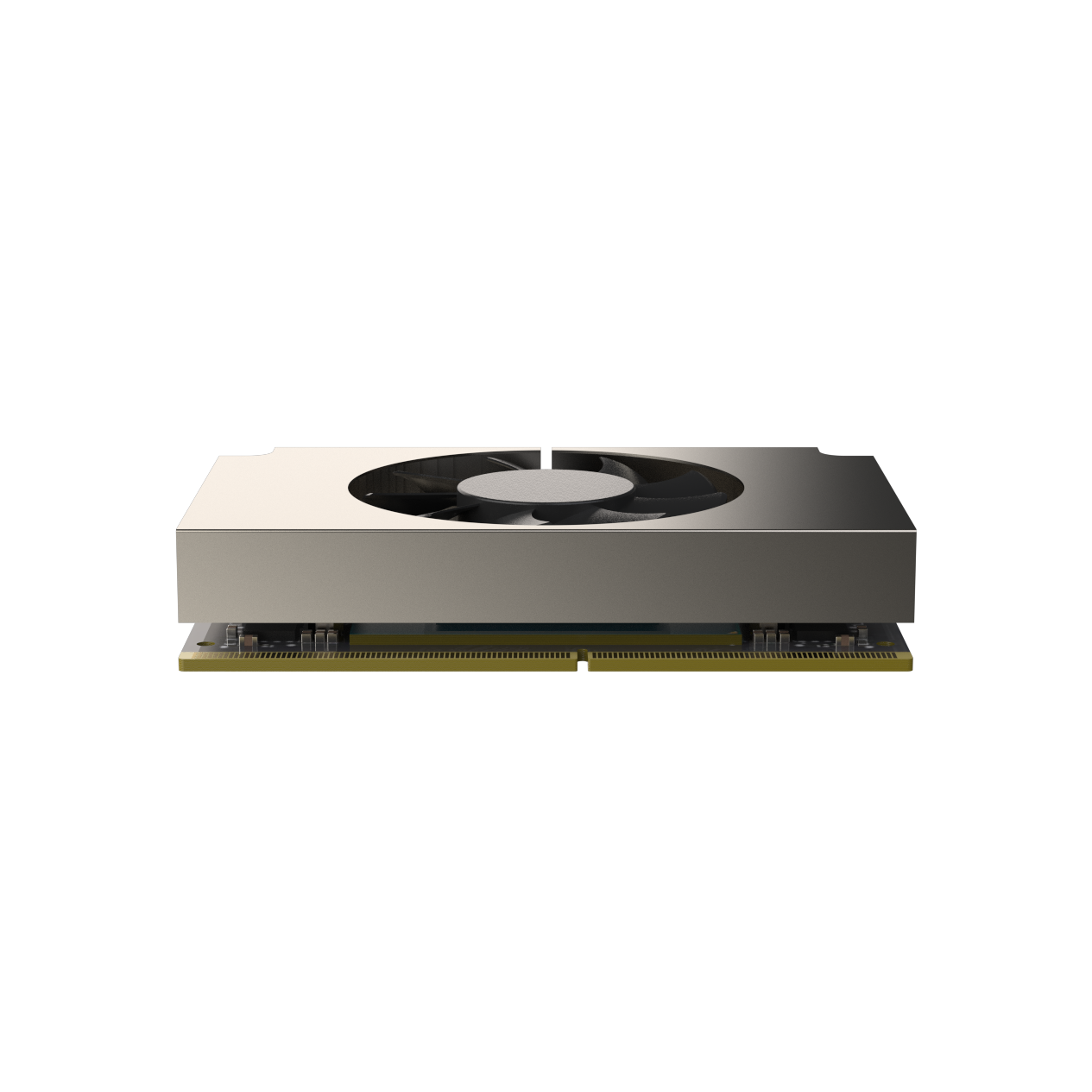

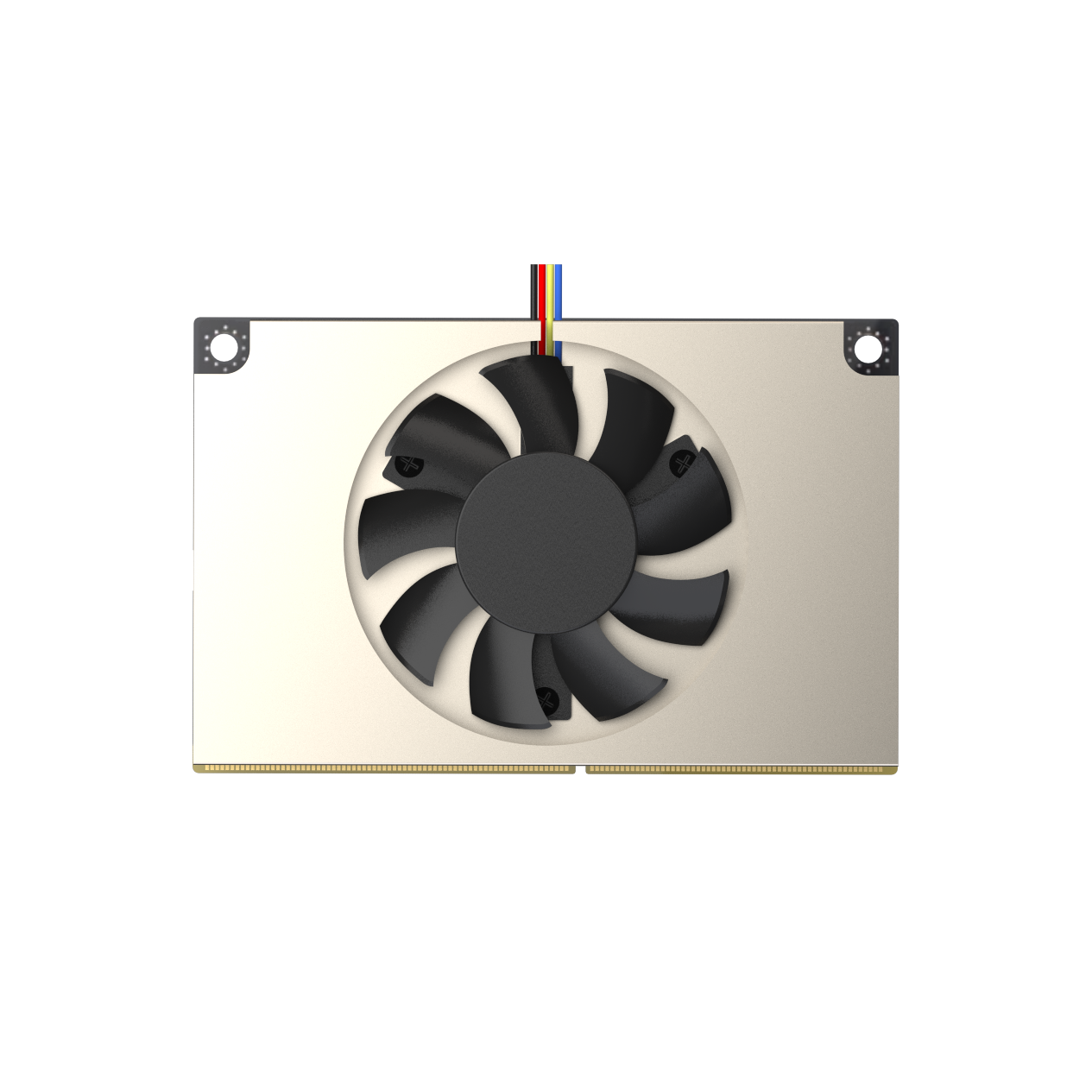

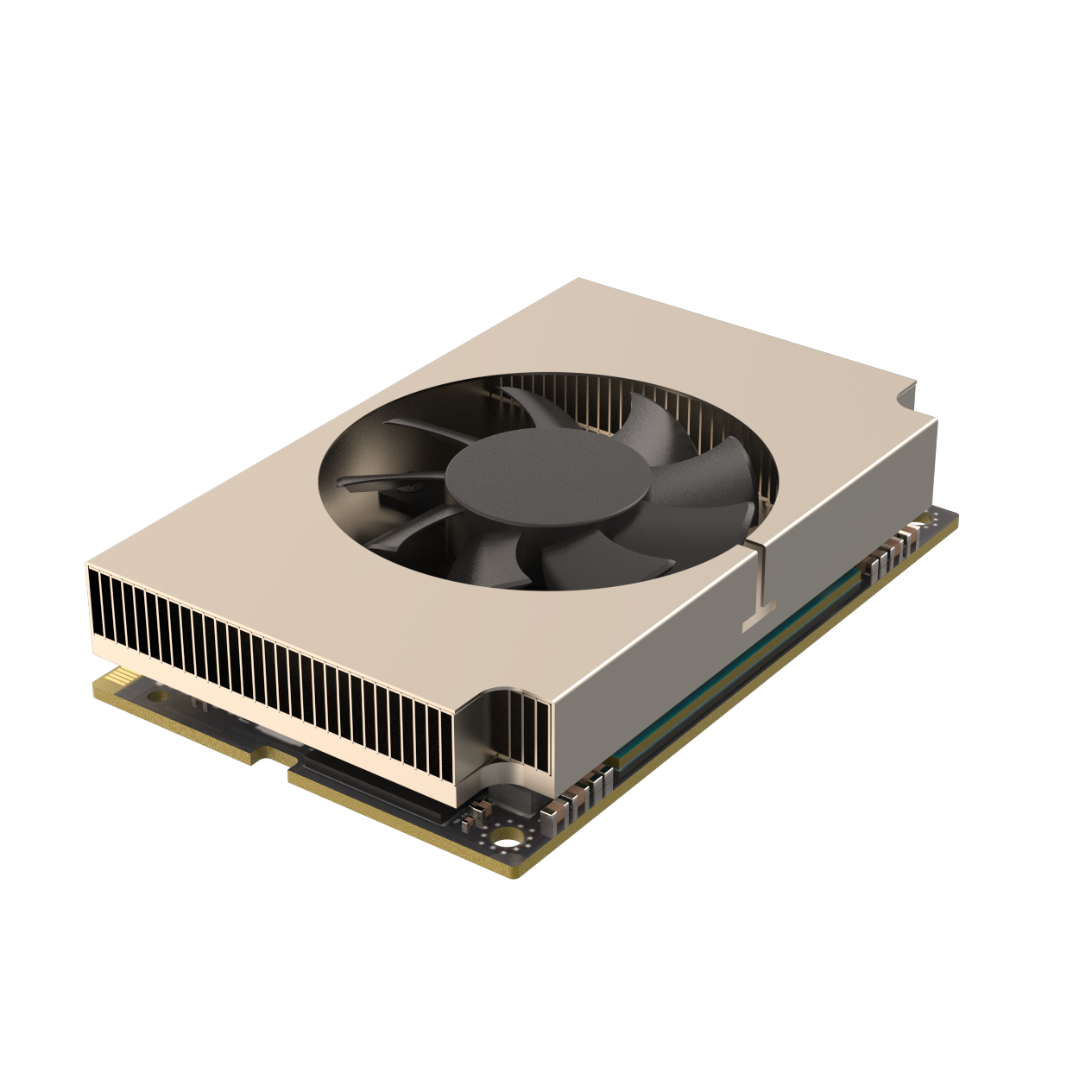

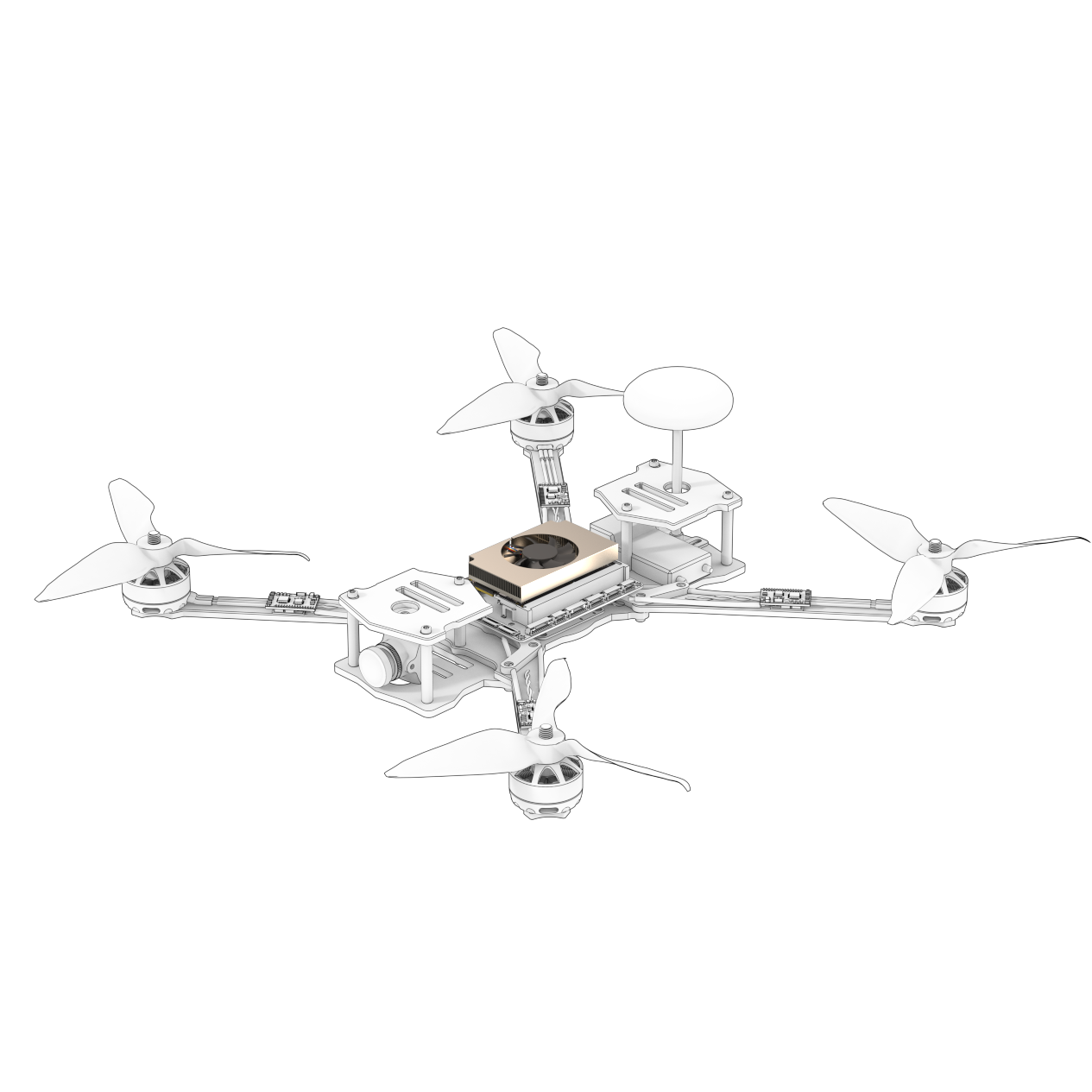

Jetstream ONX is a cooler for NVIDIA Jetson Orin NX / Nano that excels in low-profile, light weight and high cooling performance, making it ideal for UAVs and constrained spaces.
Jetstream ONX Highlights
- 45% thinner and 40% lighter than NVIDIA standard cooler with higher cooling capacity
- Supports Jetson Orin NX MAXN SUPER power mode
- Ultra-thin PHP vapor chamber, optimized airflow, enlarged surface area, compatible with liquid-metal TIM
Jetstream ONX Description

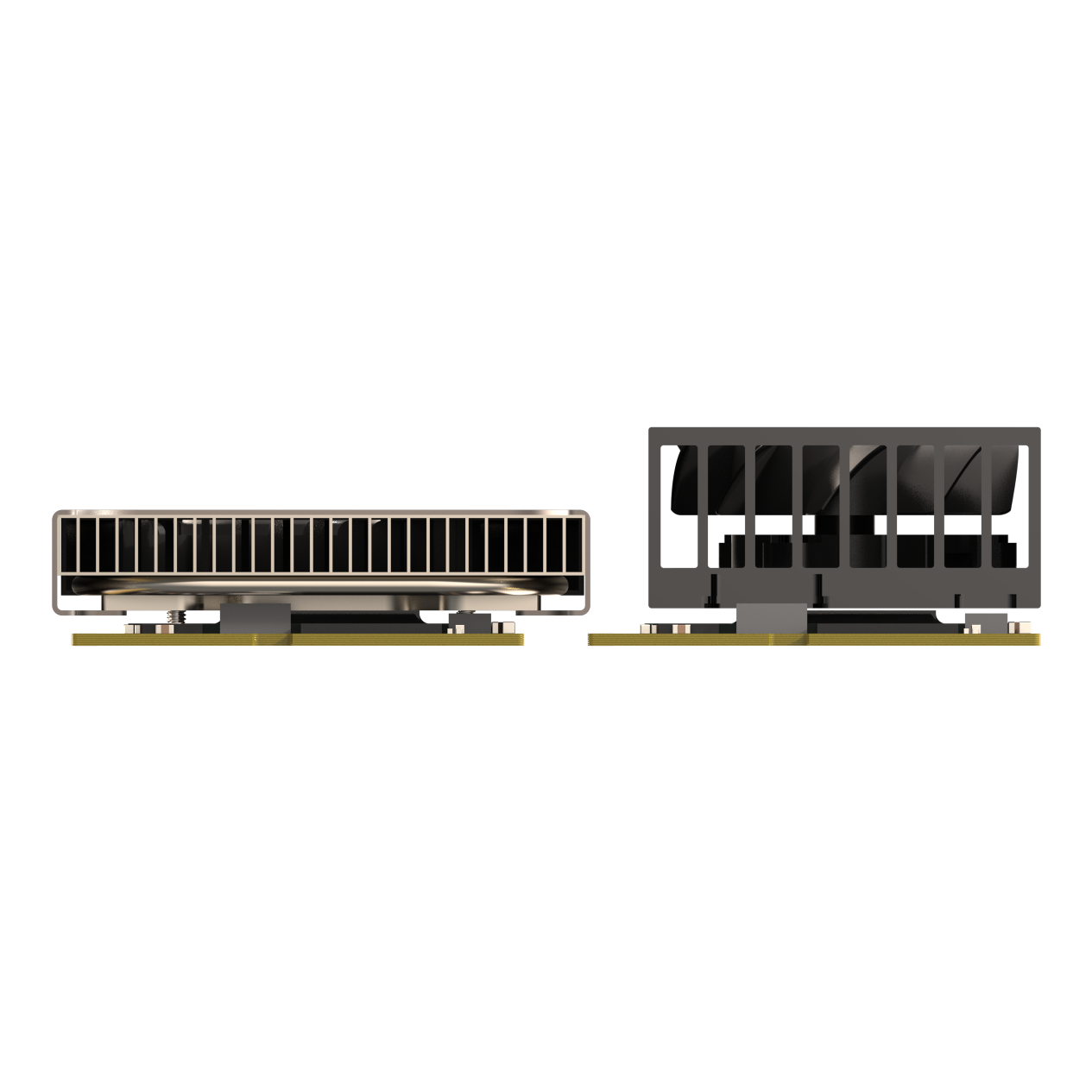

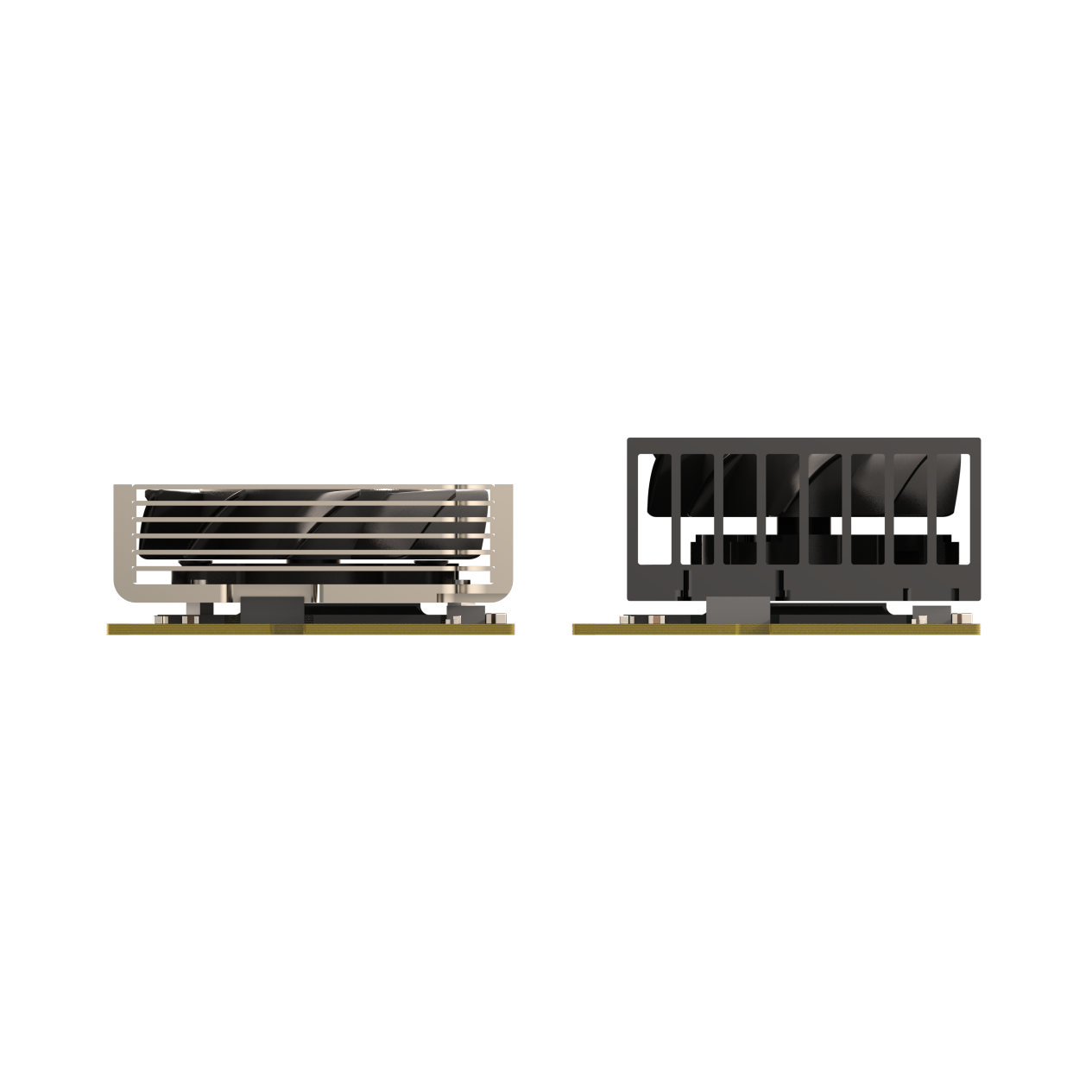

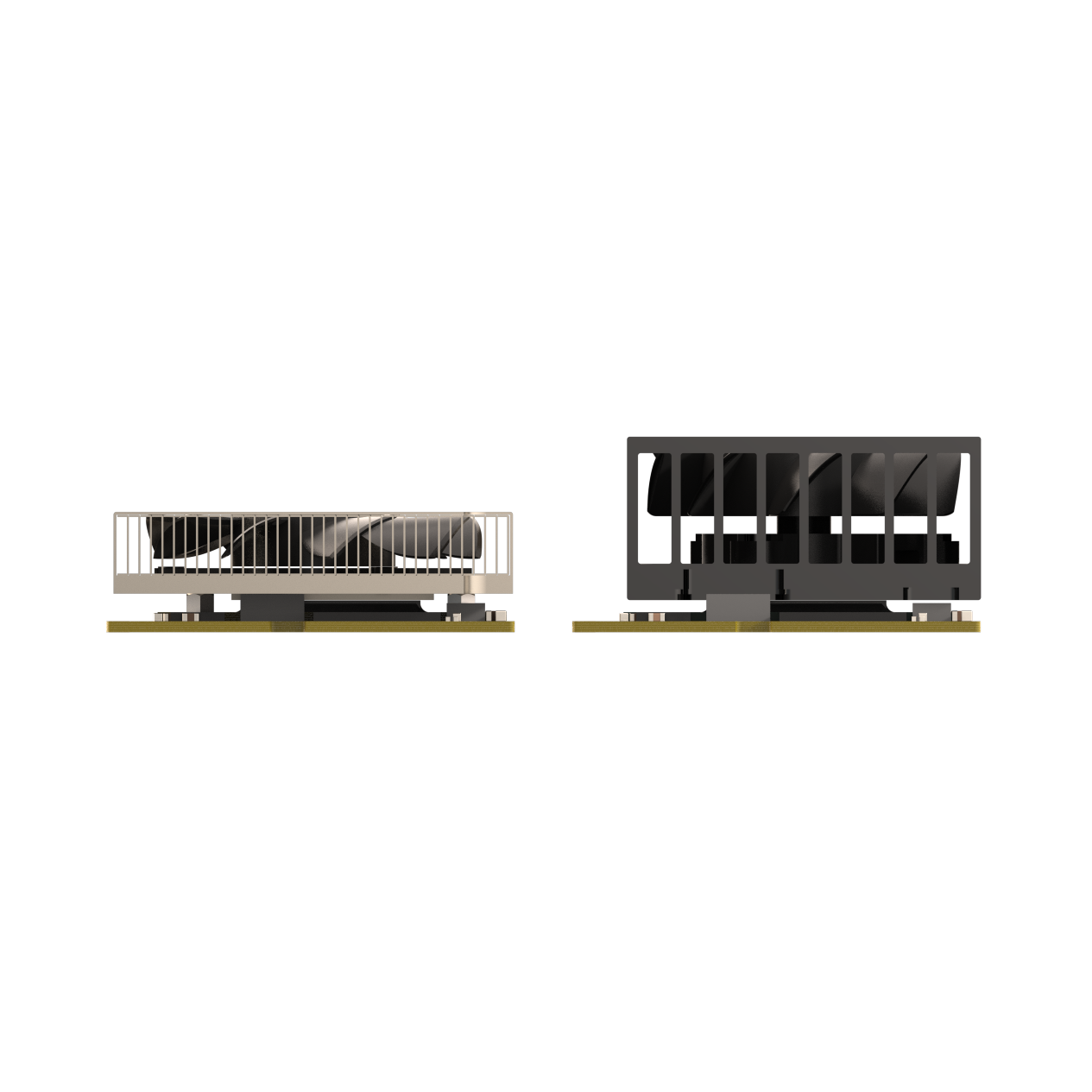

The standard NVIDIA cooler towers 18mm above the Jetson Orin NX and weighs over 50g. Thinner and lighter cooler is required for intelligent UAVs and space constrained applications.

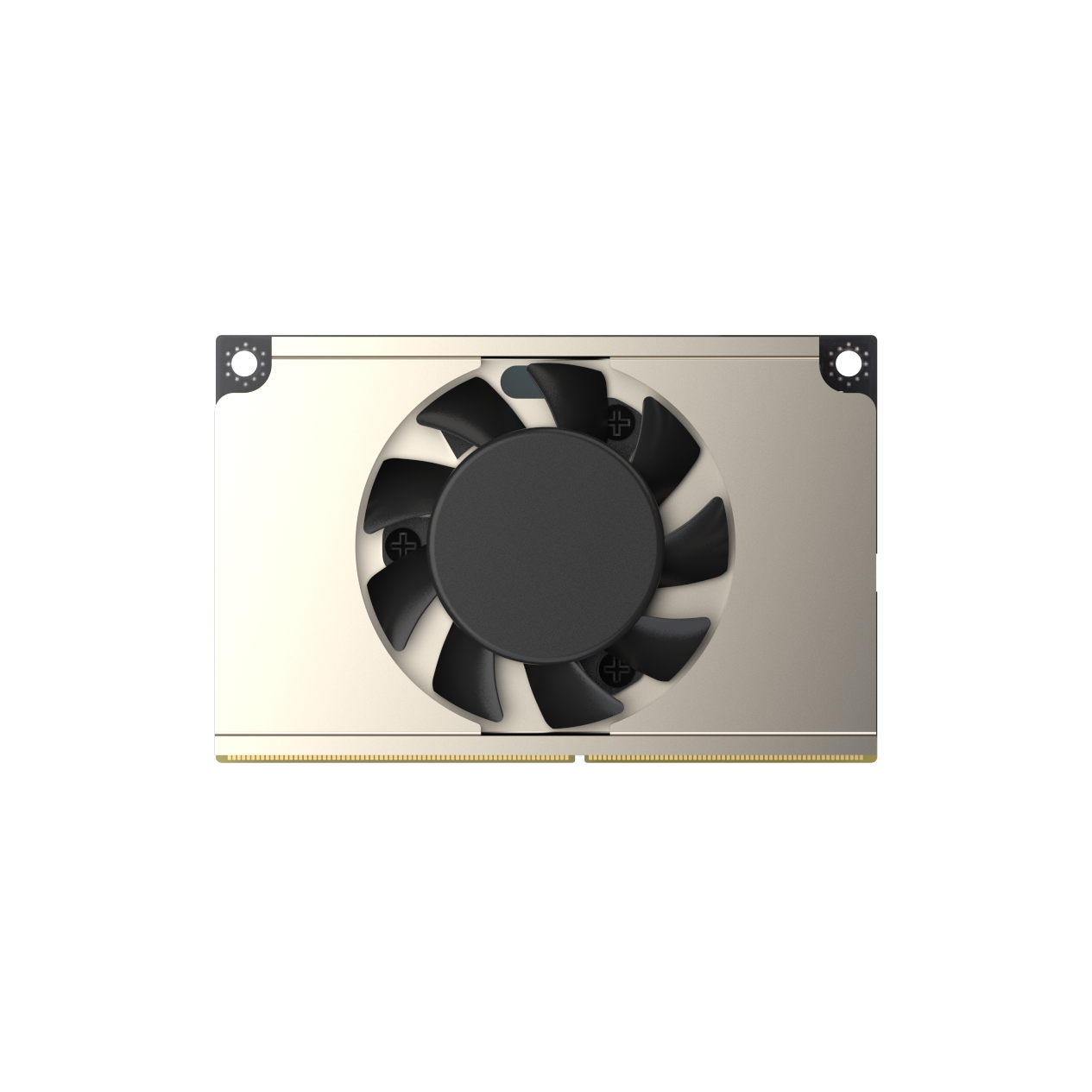

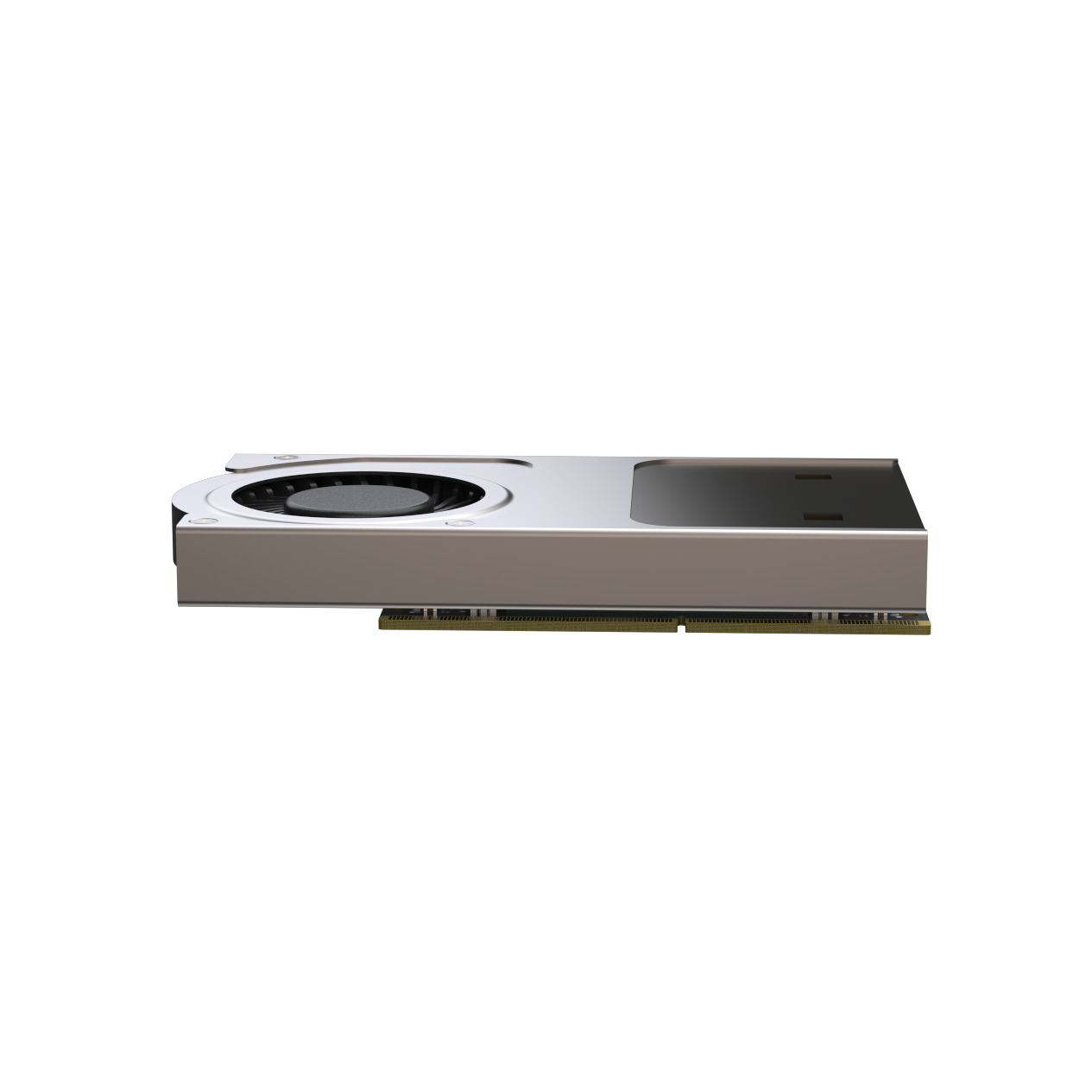

Jetstream ONX is under 10mm thin and weighs 30g, making it 40% thinner and lighter than the standard cooler, yet it provides higher cooling performance which enables cooling the Jetson Orin NX in MAXN SUPER mode.

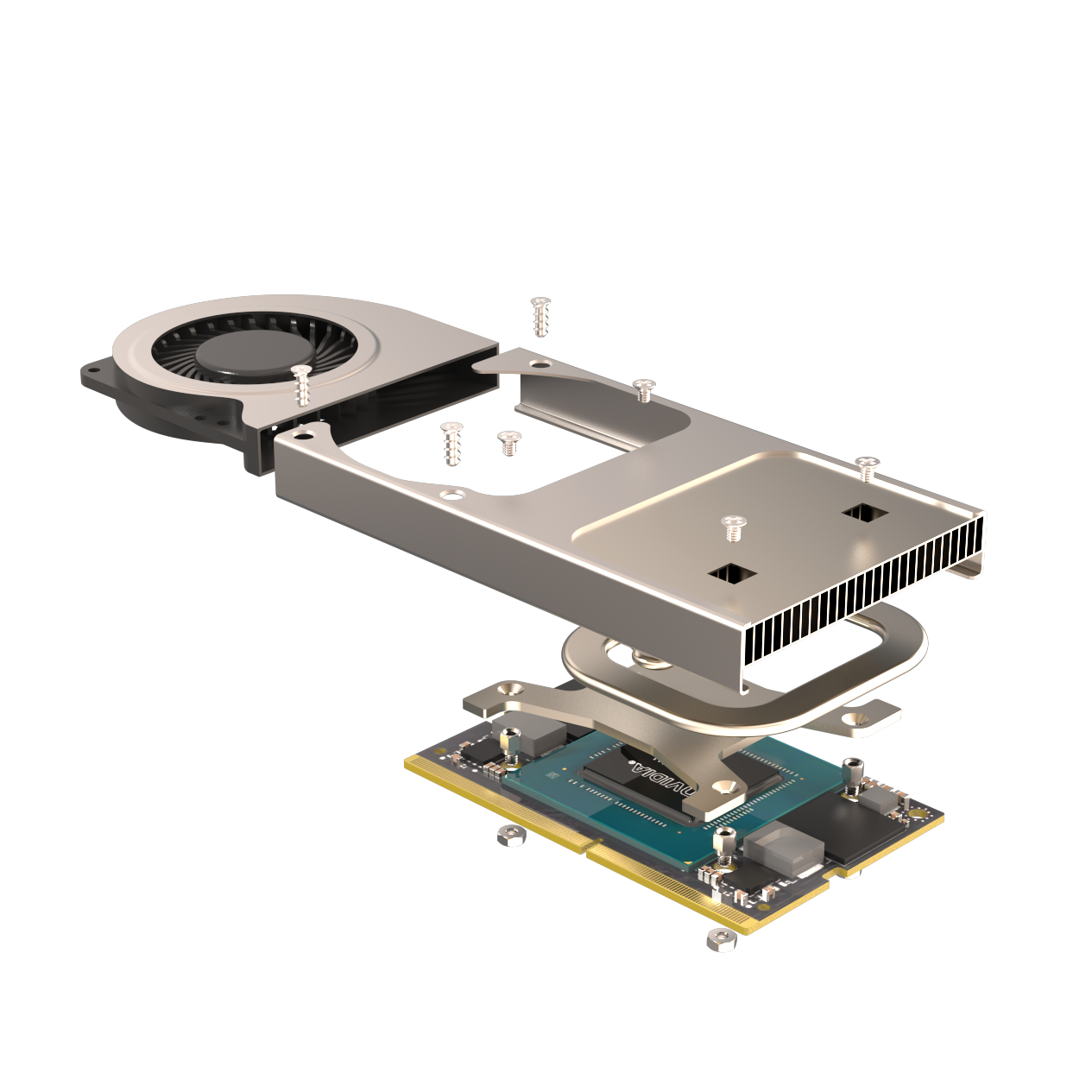

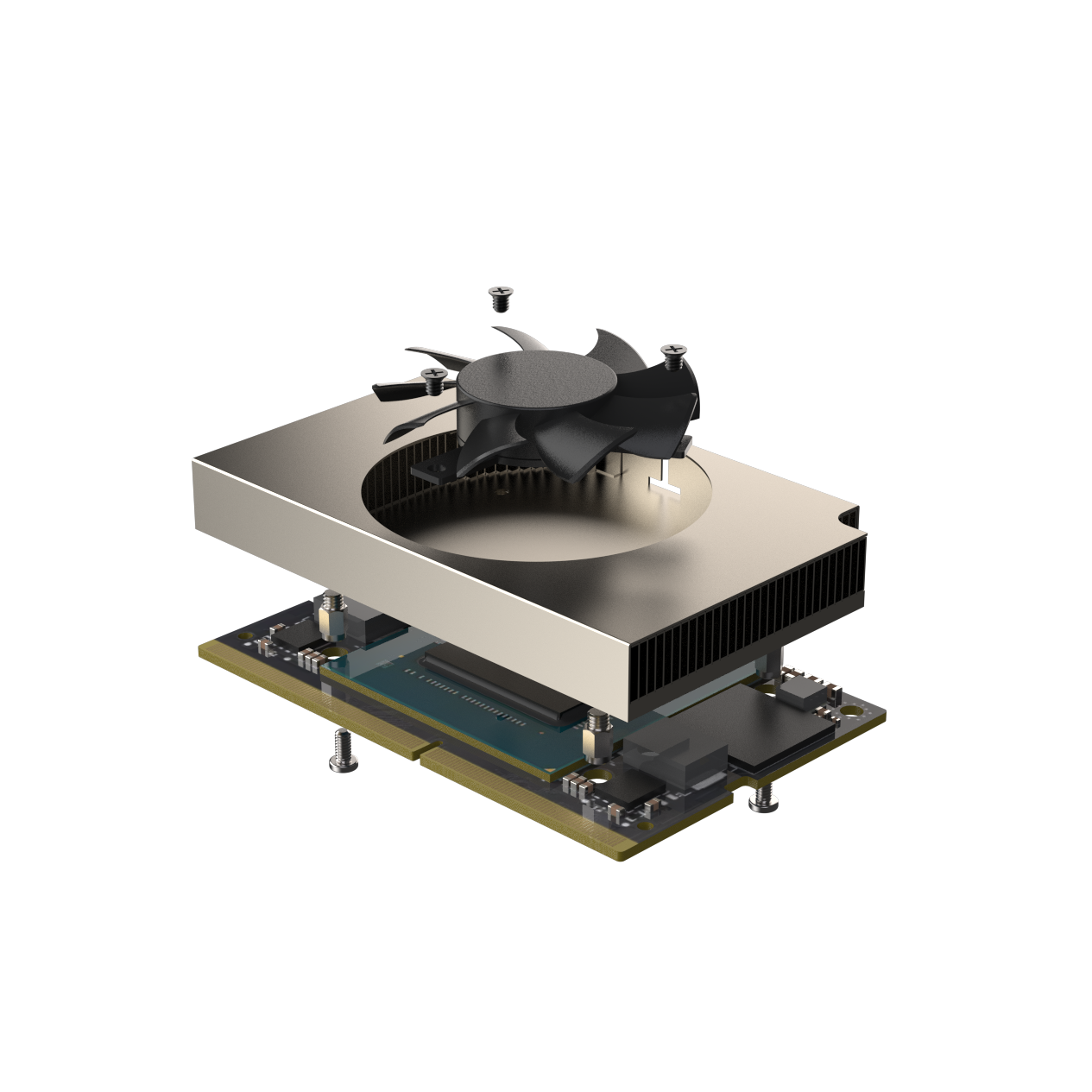

Jetstream ONX is optimized head to toe

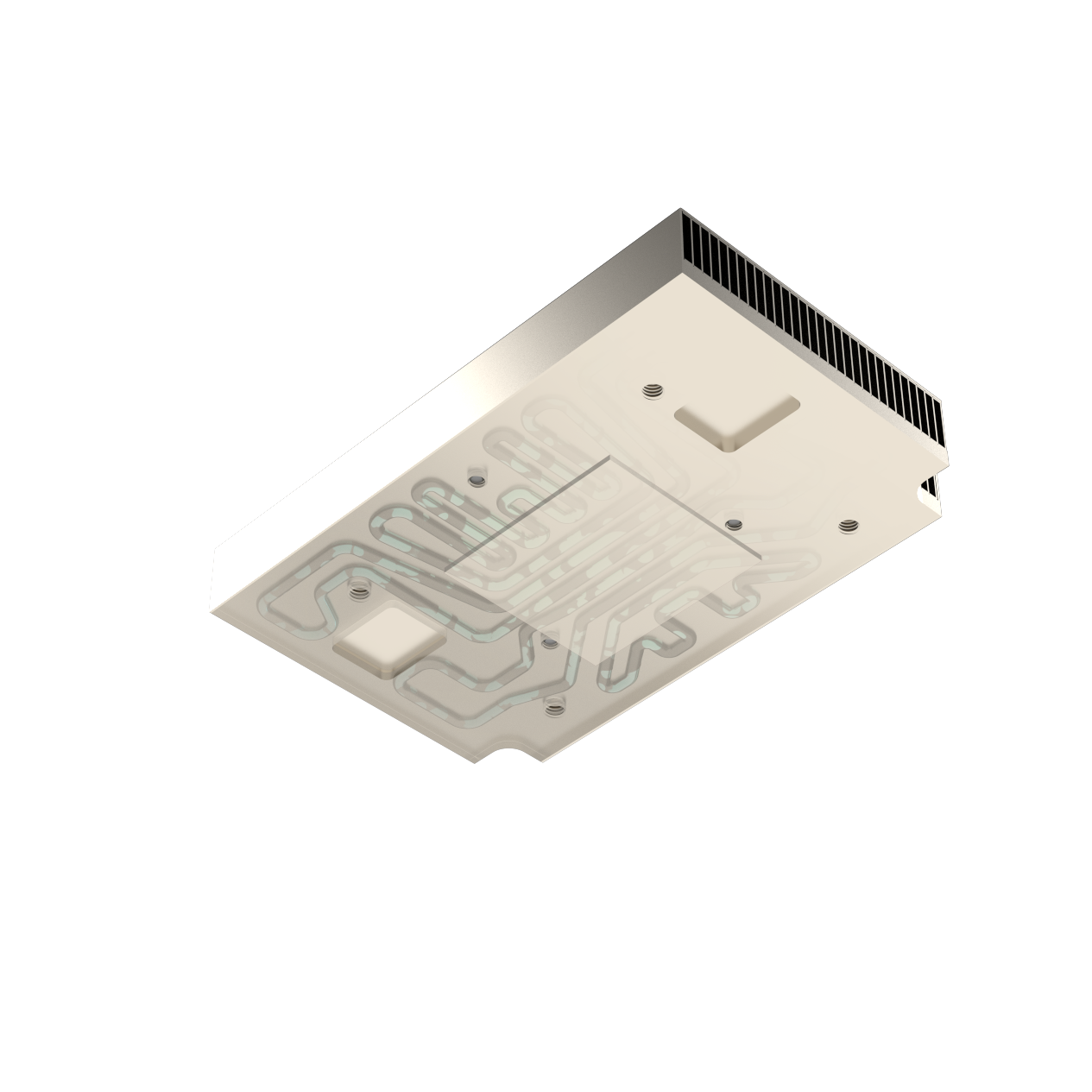

Ultra thin aluminum vapor chamber

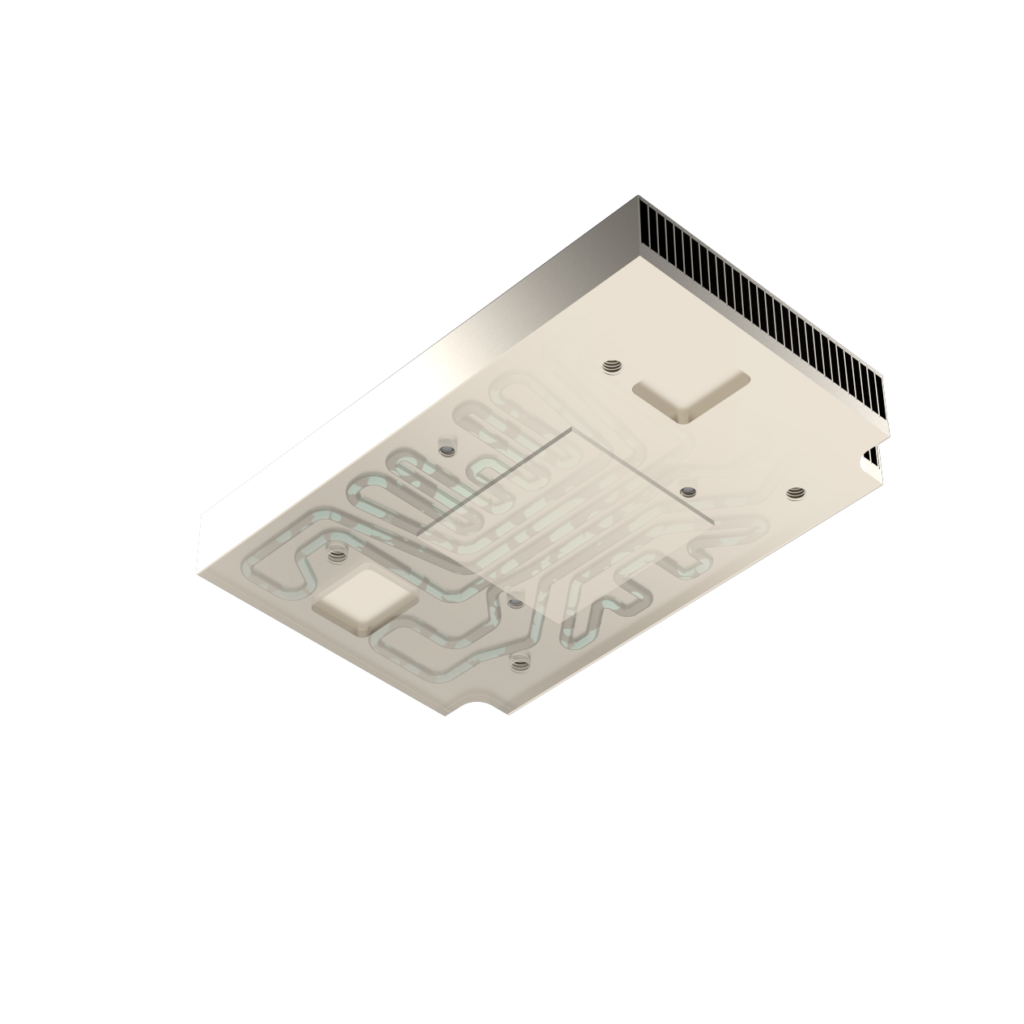

The base plate of Jetstream ONX is an ultrathin pulsating heatpipe, a state-of-the-art phase transition mechanism that ensures low resistance heat transfer independent of gravity.

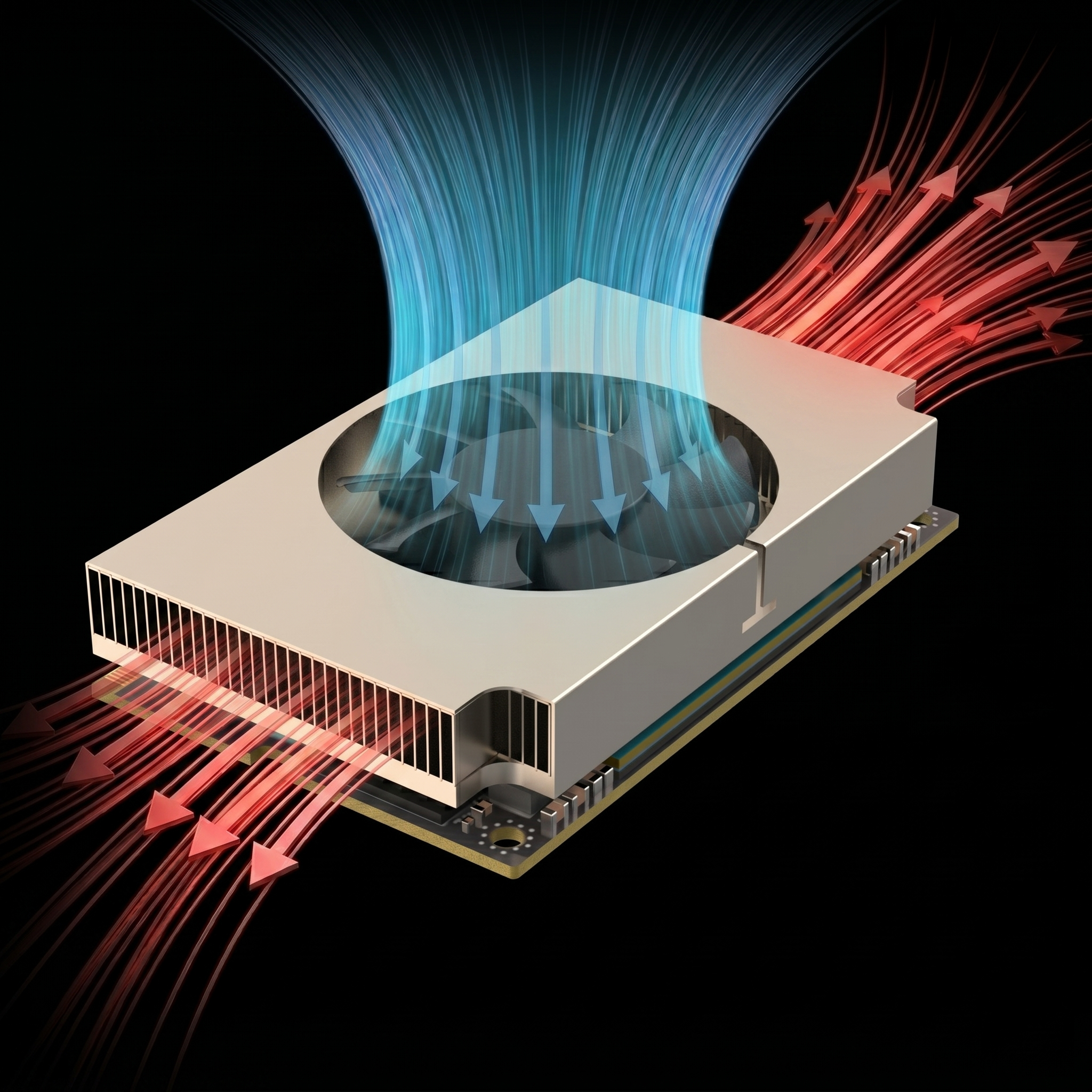

Optimized Surface Area and airflow

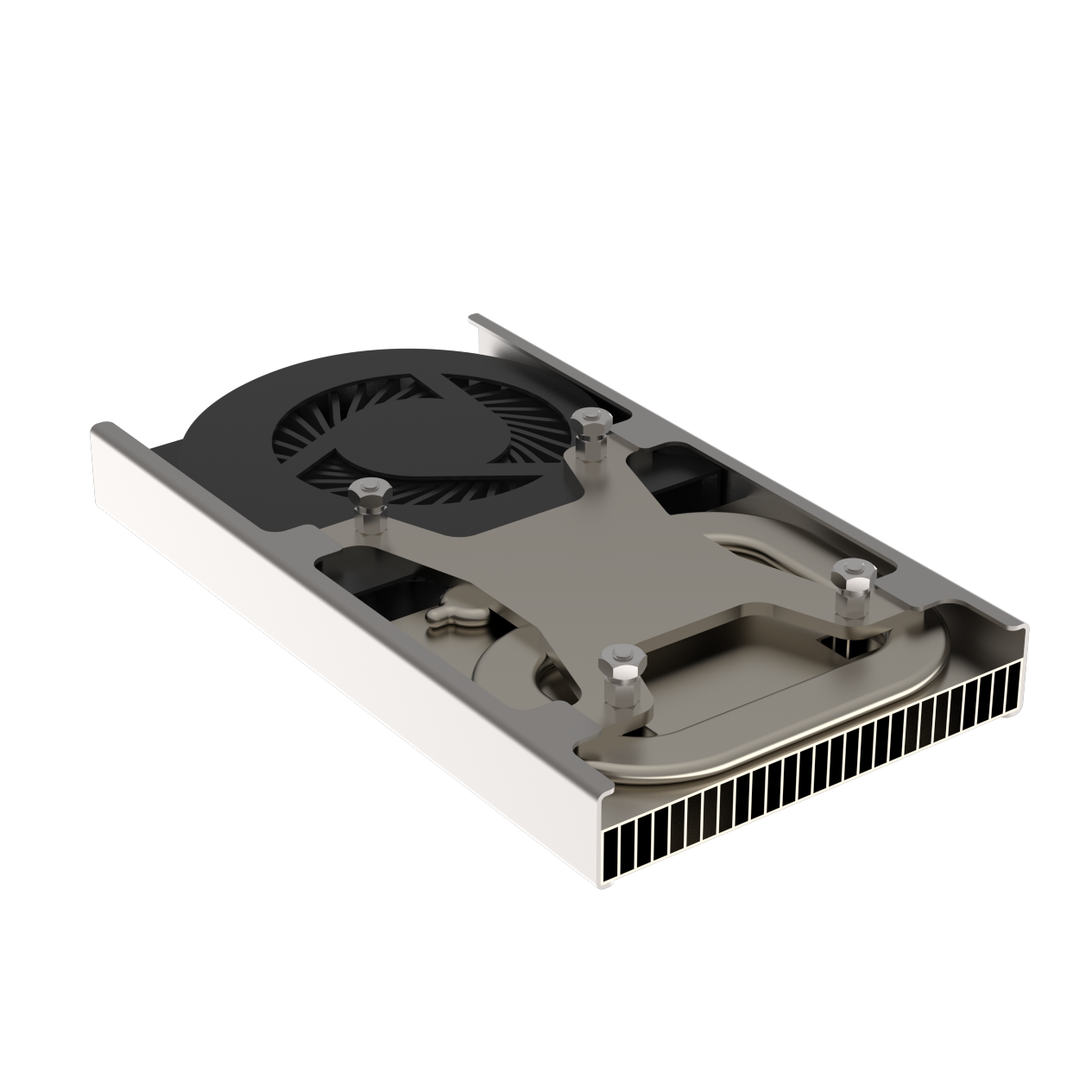

Jetstream ONX has a nearly twice the surface area of the standard cooler in a much smaller volume. This is achieved using ultra thin aluminum zipper fin array, configured to maximize airflow of the in-plane fan by eliminating dead-zones of mismatch between the fan blade velocity and the direction of the air channel.

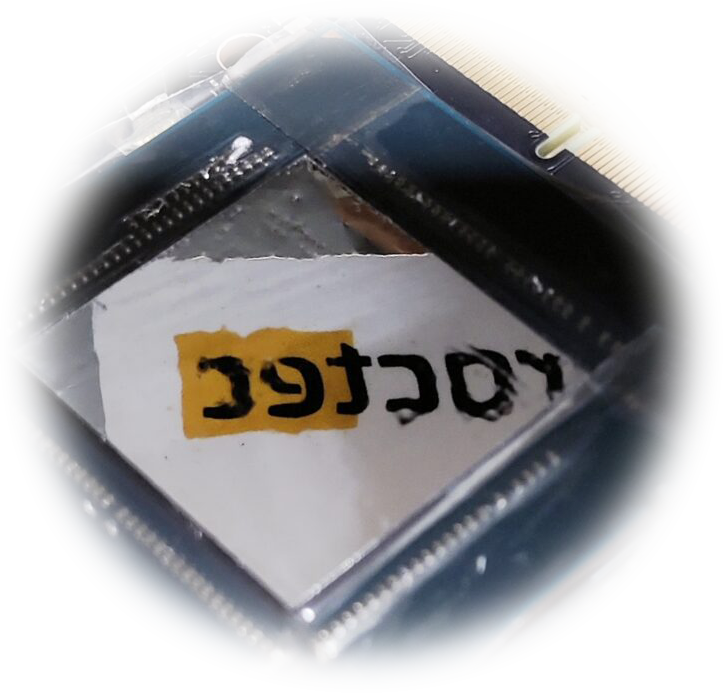

Compatible with liquid metal
Liquid Metal can reduce the junction temperature of Jetson Orin NX by up to 5ºC.
Jetstream ONX has a dedicated Nickel-plated Copper pedestal to ensure compatibility with liquid metal.
For precise application of liquid metal, see Attractec ALMAKIT

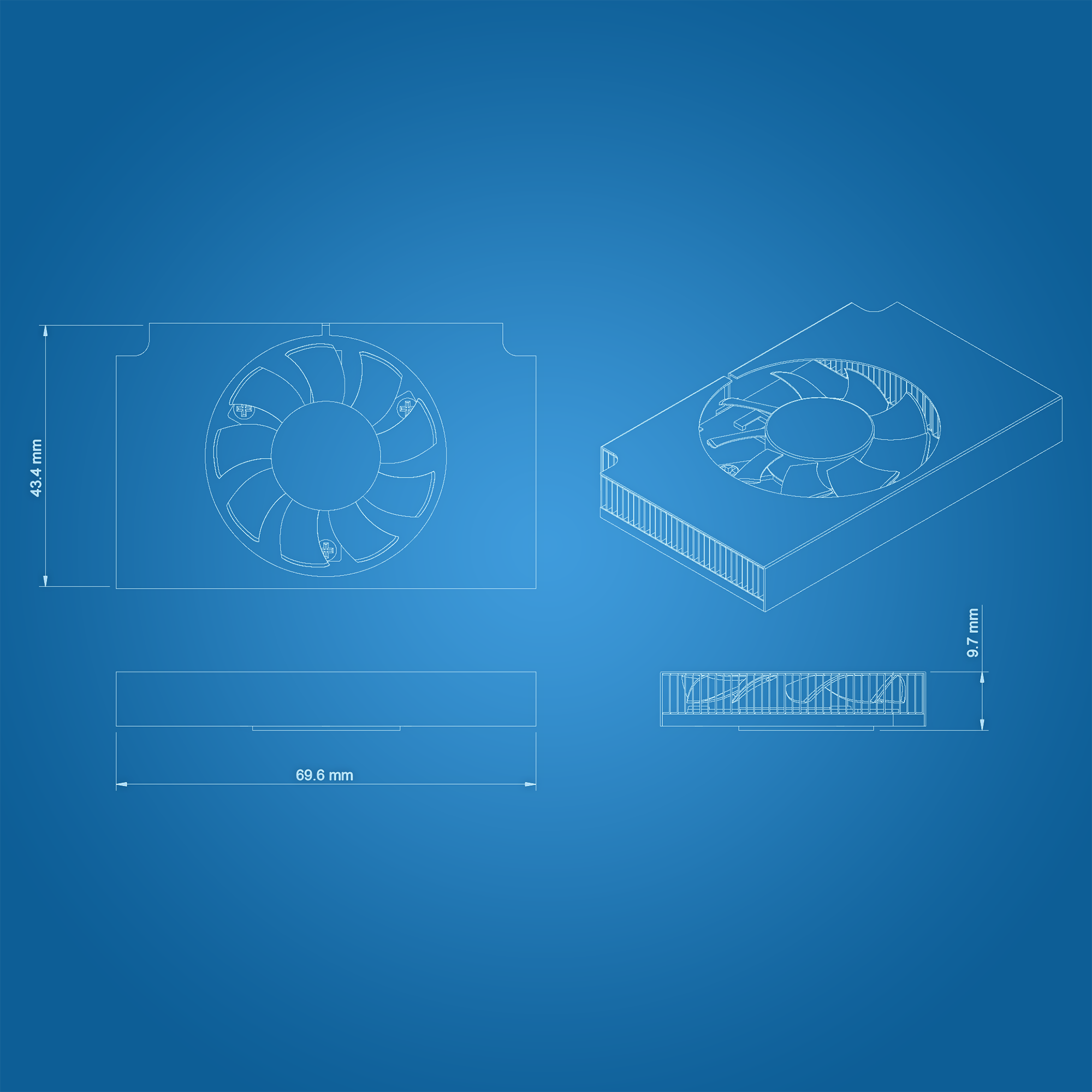

Jetstream Specifications
| Jetstream ONX | |
|---|---|
| Width | 43.4 mm |
| Length | 69.6 mm |
| Height | 9.7 mm |
| Weight | 30 g |
| Cooling Capacity | 40W at 40ºC 20W at 70ºC |
| Ambient Temperature range | -10ºC to 70ºC |
