$1,699.00
$1,699.00

Highlights

System Overview

  • High performance industrial PC with AMD Ryzen Embedded 8000
  • Ruggedized and compact with state of the art fanless thermal design
  • 10 years guaranteed availability

AMD Ryzen Embedded 8000 Performance, Efficiency & 10 Year Longevity

Bedrock R8000 is powered by the state-of-the-art AMD Ryzen Embedded 8000 processor with 8 Zen 4 cores and 16 threads running at up to 5.1 GHz.
It is the most power efficient high-performance x86 CPU on the market for compute and graphics workloads. Ryzen Embedded 8000 incorporates AMD Pro technology for enhanced reliability and security and has 10 years guaranteed availability.

State-of-the-art Fanless Design

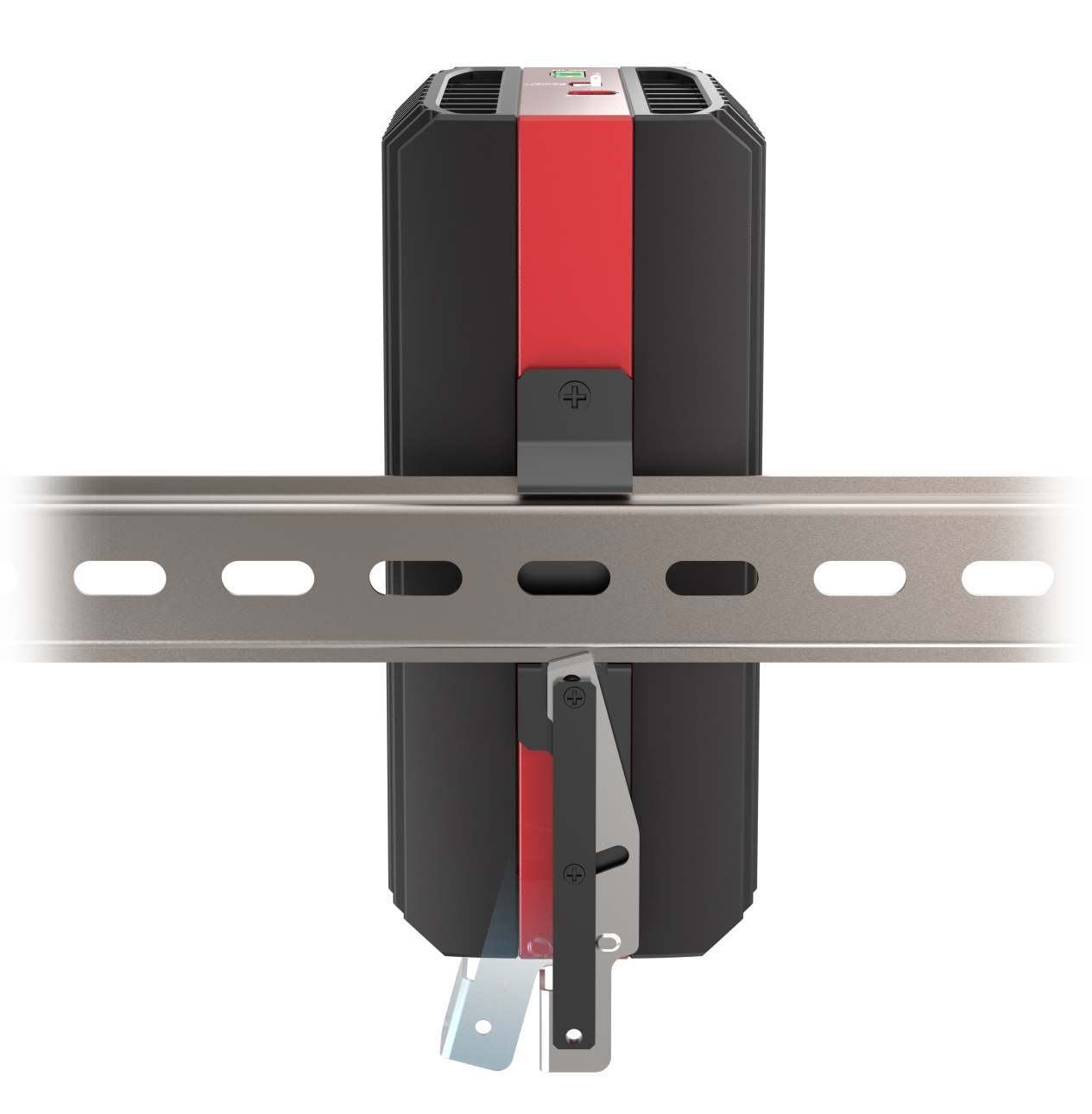

Mounting



System
CPU AMD Ryzen Embedded 8840U
8 cores, 16 threads, 15W – 28W
GPU AMD Radeon 780M
NPU AMD Ryzen AI 16 TOPS
RAM 32 GB (2x 16 GB DDR5 5600 SODIMM)
Storage 1 TB Crucial T500 NVME Gen4 x4
OS Ubuntu Linux
Display HDMI 2.1
Display Port 2.1 (USB-C)
Networking 4x 2.5 Gbit Ethernet
Intel i226, RJ45
USB 1x USB 4.0 40 Gb/s USB-C
1x USB 3.2 10 Gb/s USB-A
3x USB 3.2 5 Gb/s USB-A
Mechanical
Height 16 cm
Width 7.3 cm
Depth 13 cm
Mounting DIN-Rail, VESA, Wall, Table top
Environmental
Power 12V – 24V DC
Temperature range 0 to 70ºC

Block Diagram

  • Bedrock model 101
  • Power supply
  • Aluminum stand
  • DIN Rail mounting bracket
  • VESA mounting bracket
